20mmx20mm UV LED curing systems
LED curing systems is packed with touchscreen controller, irradiation power is adjustable from 10% to 100%, irradiation time can be set freely. With compact design, accept customized in shape & dimensions.
Globally Available with CE Marking

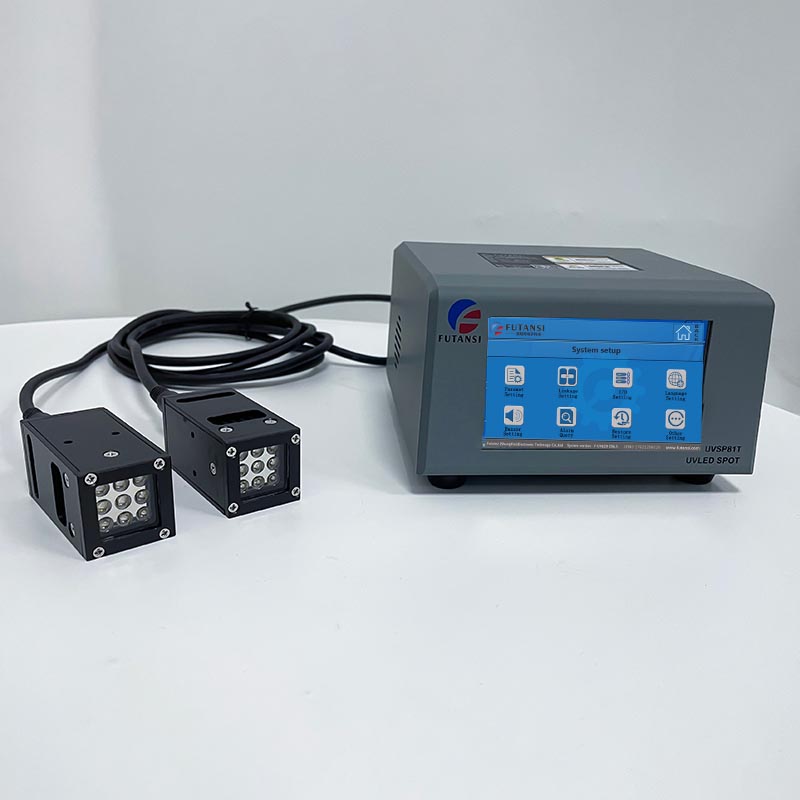

Futansi introduces the UVSP81T-2020, a UV curing system that merges the adaptability of previous models with enhanced expansion features. This system consists of a user-friendly touchscreen controller and a high-intensity LED emitter with a distinctive design. Over a 20 mm x 20 mm area, it offers superior uniformity and consistent curing energy compared to conventional systems. The curing energy is precision-controlled by a microprocessor within the LED chip.
This innovative design permits ultimate customization, with a choice of three wavelength LED emitters (365, 385, 395, or 405 nm) and the freedom to adjust the curing area's size and pattern. It offers versatile setup options, suitable for both bench-top operation and automated processes, where the emitter can be mounted onto robotic arms or at a distance from the controller without intensity reduction.
The system features two operational modes:
- Admin Mode: Provides full device control for setting curing time and intensity cycles, allowing users to program and save specific curing profiles for future use.
- Production Mode: Offers a simplified interface for manufacturing staff to operate with ease.

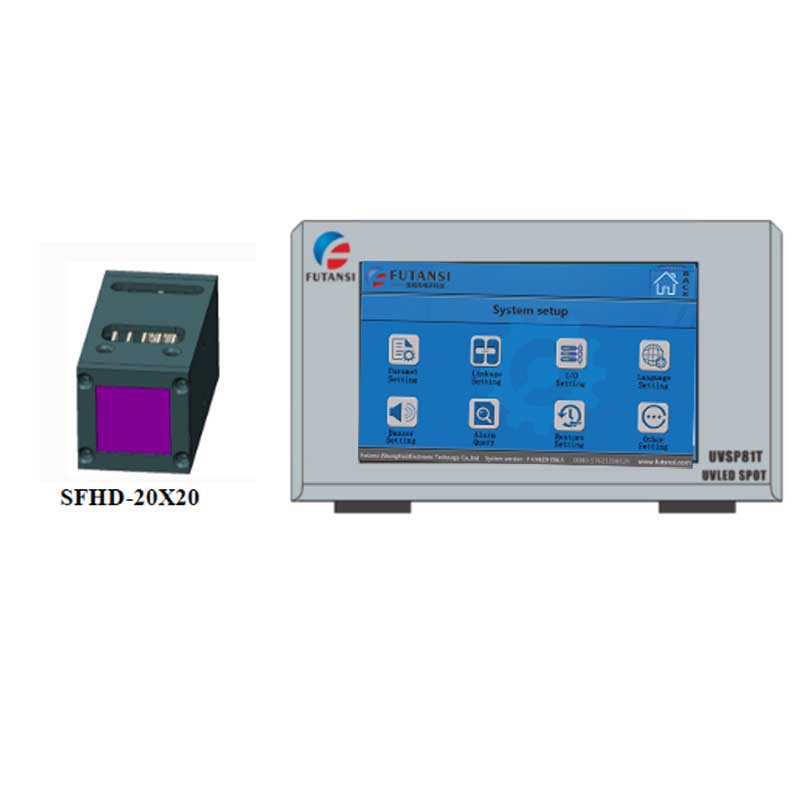

The complete UVSP81T system includes a controller/power supply and LED emitter, with wavelengths of 365, 385, 395, and 405 nm available. Various accessories can be integrated for specialized applications, and components are sold individually. Futansi provides a one-year warranty against material and workmanship defects from the purchase date.
Futansi also offers a Try-and-Buy program, allowing potential customers to test the light-curing systems free of charge for a two-week period.
Features
- High intensity
- Very high uniformity across entire cure area over a wide range of working distances
- LED emitters available in 365, 385, 395, or 405 nm wavelengths
- Admin and production modes
- Touch screen with full keyboard
- Instant on-off
- Efficient LED temperature management and system monitoring
- Remote I/O interface
Outline Dimensions
LED Lamp
Controller
Note: The controller package comes with a 2-meter interconnect cable for linking the controller and emitter. For longer distances, an additional interconnect cable can be purchased to extend the range without compromising performance.
