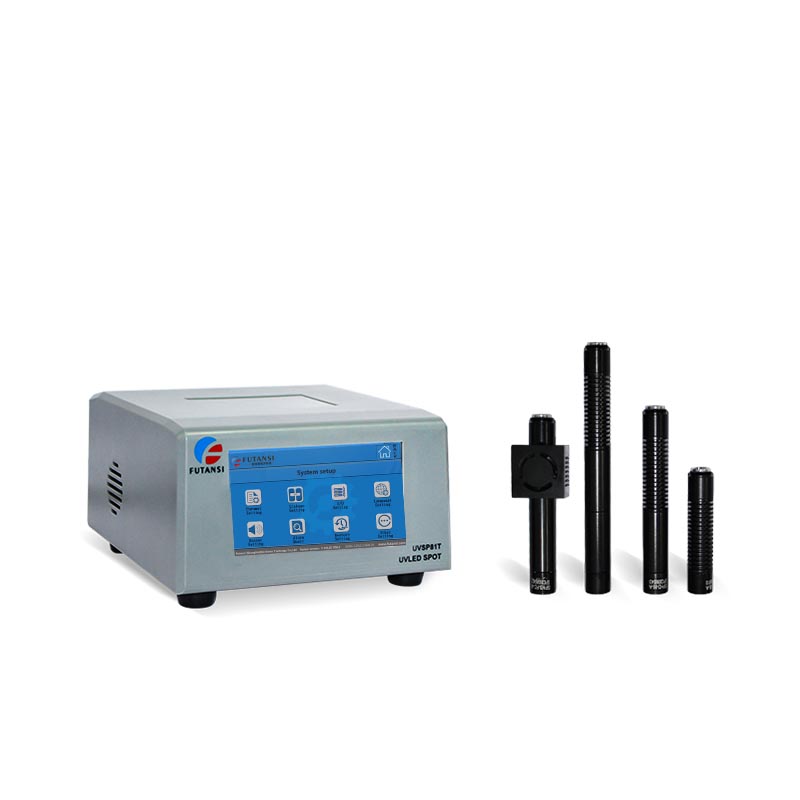

UV spot curing system

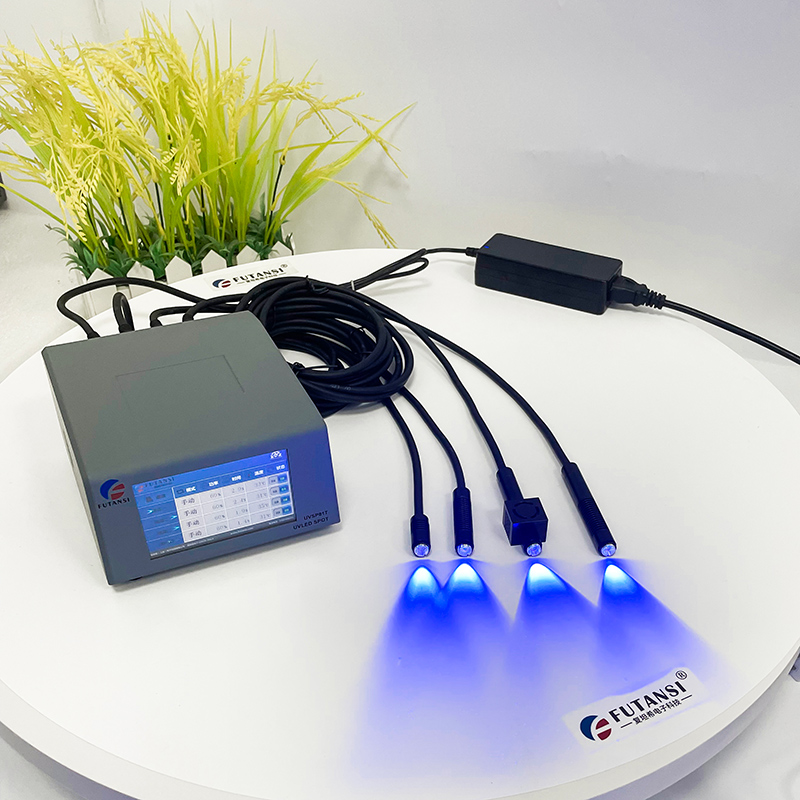

UV LED spot curing system with up to 4 LED heads with an extremely long service life.
Furthers:
- The wavelength of the LED range is 254~1050nm;
- irradiation intensity range from 500mw/cm2 ~ 20,000mw/cm2;

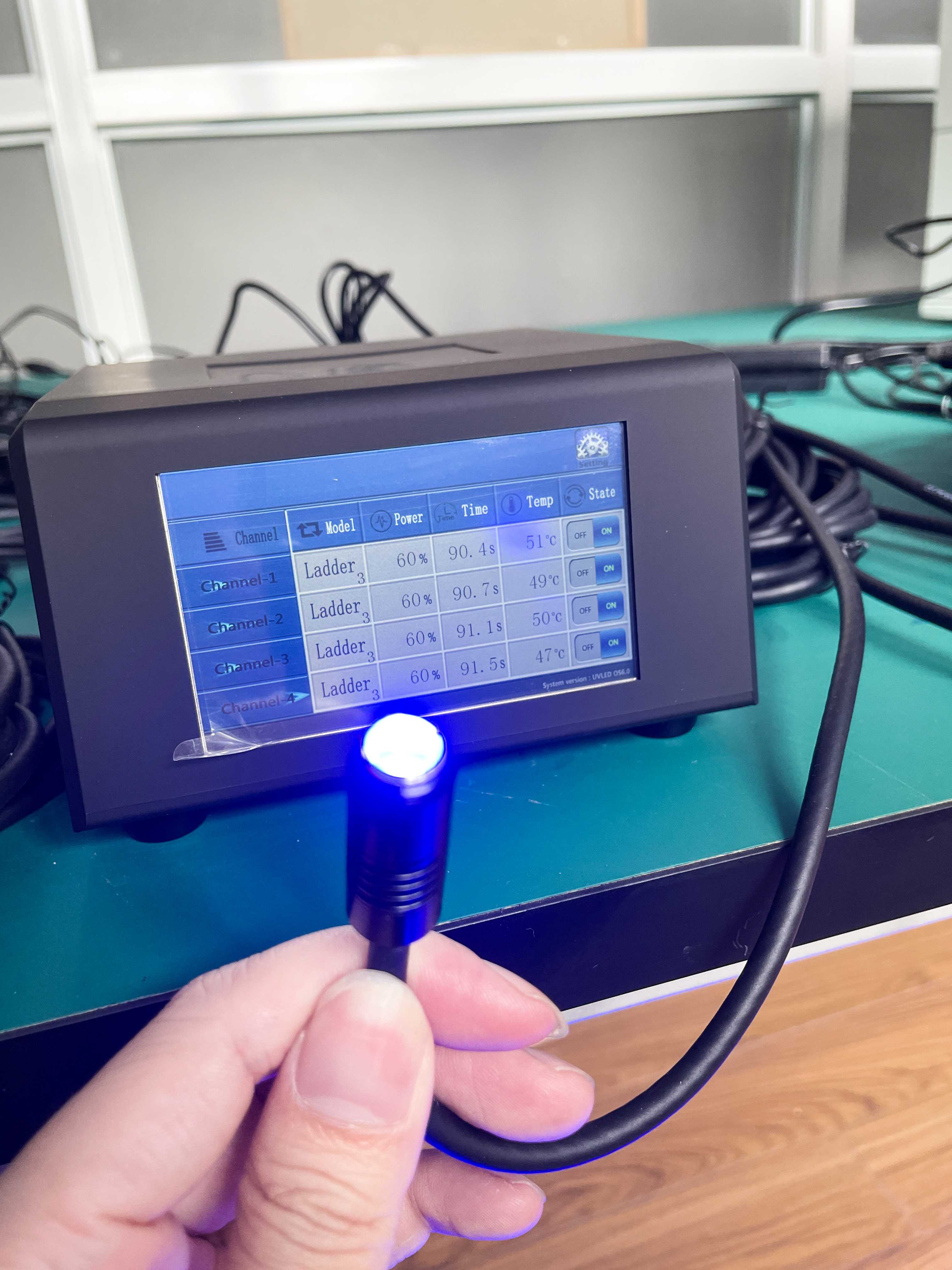

- packed with touchscreen controller, intensity adjustable (10~100%); time setting available;
- Extra RS232/485 for any serial accessory control/interface
- Range of physical I/O for any connection requirements
- version of input voltage: 100VAC to 400VAC (supply transformers for different regions)
Applications:
Futansi LED UV spot curing systems are appropriate for various applications:
-
Precision Assembly in Electronics and Optics: UV curing technology is pivotal for bonding, fixing, or encapsulating components within the electronics and optical sectors. It ensures precise adhesion and protection, crucial for the performance and reliability of devices.
-
Intensive UV Treatment in Life Sciences: The chemical, biological, and pharmaceutical industries rely on high-intensity UV irradiation for various applications. These include the synthesis of compounds, disinfection processes, and the polymerization of materials.
-
UV Irradiation in Controlled Environments: In clean rooms, UV irradiation is employed for its sterilizing properties, ensuring a contaminant-free environment for sensitive applications such as semiconductor manufacturing or medical device production.
-
Enhancing Fluorescence for Quality Control: Utilizing UV light to stimulate fluorescence is vital for material testing and image processing. This method allows for the detection of minute defects or the analysis of material properties under various conditions.
Outline Dimensions
UV LED Spot Curing system - touch sreen Controller
UV LED Spot light heads
Note: The controller package comes with a 2-meter interconnect cable for linking the controller and emitter. For longer distances, an additional interconnect cable can be purchased to extend the range without compromising performance.
Resources
UV LED Spot curing system--touch screen control
