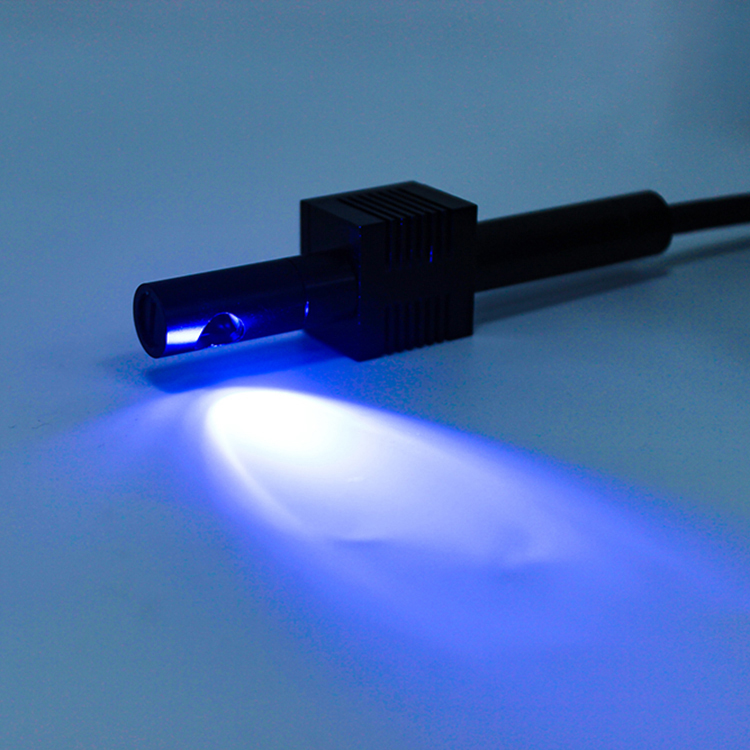

LED UV curing light source

Compared with conventional metal-halide or mercury-arc lamps, UV-LED lamps has the advantages:

The relatively narrow waveband of energy emitted by UV LEDs results in cooler substrate temperatures compared to traditional UV lamp systems, making them ideal for curing thermally sensitive materials.

Futansi LED UV curing systems offer many energy and cost-saving benefits, such as no warm-up period, lower energy consumption, no bulbs to change, and more consistent wavelength and intensity output for better process control.

UVLED belongs to the cold light source wave and working temperature won't raise too much to room temperature compared with Mercury lamps; mercury lamp generate a lot of heat, led for the cold light source, no heat radiation, itself save electricity, and produce light without pollution, the use of safe. Mercury lamps need to consume a lot of electricity, and produce a lot of useless heat radiation, can be utilized for low light efficiency; mercury lamps will produce ozone when working, will not pollute the environment.

UVLED continuous work more than 25,000 hours; power on that is bright, and can be opened and closed frequently, only in the curing irradiation power, the actual service life of up to 100,000 hours or more; output cable instead of fiber optic, durable and reliable. Mercury lamp life is short, about 2,000 hours; should not be opened and closed frequently, usually energized throughout the day, short life and waste of energy.

most of the power is consumed in the LED light-emitting, the same controller can be out of four or more irradiation head. Mercury lamp power, fan power and other accessories high power consumption, most of the power consumed in the useless heat, resulting in waste.

Available wavelength (nm): 255/265/275/308/310/340/365/375/385/395/405/415/425/ 445/455/460/480/510/520－530/610/630/660/680/720/810/850/940/1050.
