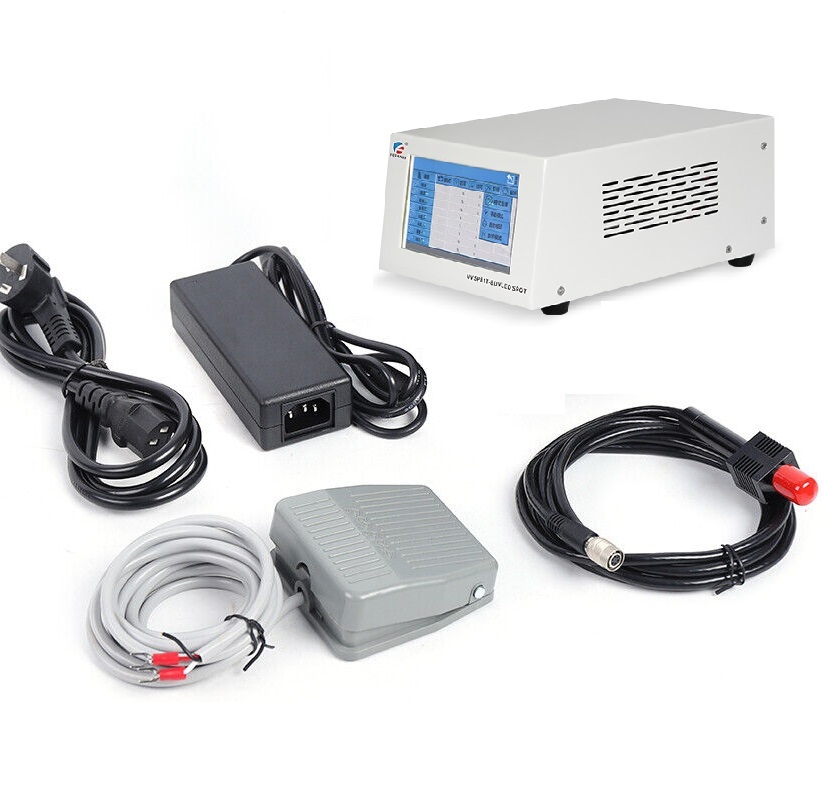

UV LED Spot Curing System UVSP81T
You can select the irradiation head for your installation environment, four types of heads are available.
UV LED Spot Curing System UVSP81T
Wavelength lineup including deep ultravoilet
254nm 310nm 365nm 385nm 395nm 405nm
* High power of 10000mw/cm2
High intensity is achieved by using high power LED and unique optical design
* Wide range of wavelengths
Wavelength include UVA,UVB,UVC, range from 254nm ~1050nm; Available wavelength (nm): 255/265/275/308/310/340/365/375/385/395/405/415/425/ 445/455/460/480/510/520－530/610/630/660/680/720/810/850/940/1050
* Long lifetime up to 25,000 hours
* 8 individually controllable heads
The eight irradiation heads are individually controlled

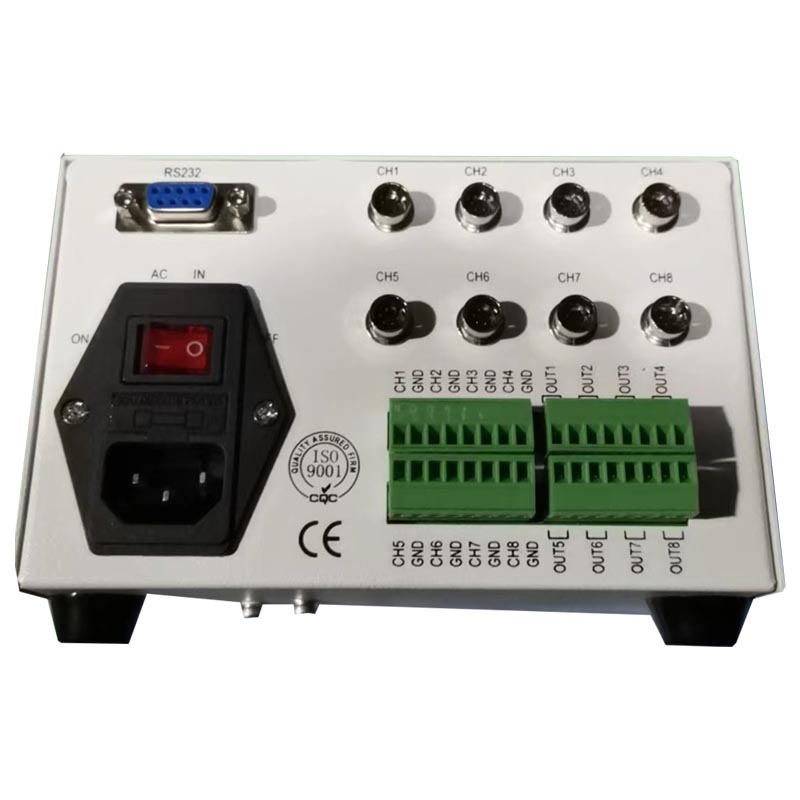

* I/O port and RS-232/485 communication interface
You can connect this UV LED curing system with your automatic line.
(1)You can select the irradiation head for your installation environment
(2)You can select different wavelengths according to your workpiece
(3)You can select different Lens diameter according to your workpiece conditions
Outer Dimensions of UV LED curing system controller（mm）
Outer Dimensions of LED heads（mm）

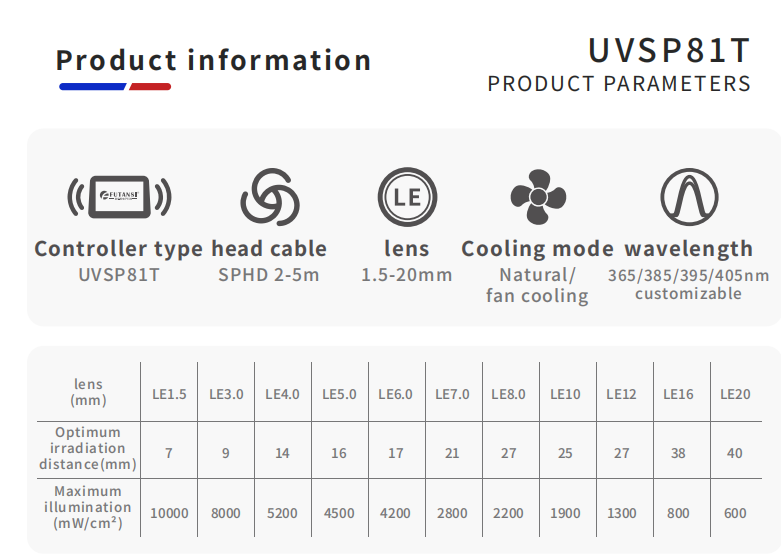

Specifications
Controller
|
Specification |
unit |
technical requirements |
|
Adapter power |
12V/5A |
|
|
The fuselage size |
mm |
135×86.5×150 |
|
Cooling way |
Natural cooling |
|
|
The control mode |
Screen touch/foot /RS232/485/PLC |
|
|
Adjustable range of irradiation power |
Adjustable between 0% and 100% |
|
|
Radiation pattern |
Manual: always on after startup |
|
|
|
Automatic: Set the countdown time for irradiation (0.1-999.9s) |
|
|
|
Step: Achieve step irradiation (1-20 steps) |
|
|
|
Cycle ladder: single/infinite |
|
|
Communication control |
RS232 serial port: achieve data reading and writing, LED switch control |
|
|
|
I\O interface :LED switch control and operation state output |
|
LED irradiation Heads
|
The LED type |
UV LED beads |
|
|
Duration of use of UVLED |
20,000 hours or so |
|
|
The cooling way |
Natural cooling |
|
|
Irradiation head material |
Aluminum alloy |
|
|
Wavelength range |
365±5nm |
|
|
External structural dimension |
With reference to graphic |
|
|
Luminous size |
mm |
1.5 |
|
weight |
kg |
0.2 |
Note: The controller package comes with a 2-meter interconnect cable for linking the controller and emitter. For longer distances, an additional interconnect cable can be purchased to extend the range without compromising performance.
