Industrial PLC-Automated UV LED Curing Conveyor System with 365nm Fan-Cooled Lamp for High-Speed Drying
Application Fields
Electronics manufacturing is used for bonding and encapsulation of electronic components.
Semiconductor industry: In the semiconductor manufacturing process, it is used for photoresist curing, to protect sensitive materials from pollution and physical damage.
Optical industry: used in the assembly and encapsulation of optical components.
3C electronics: bonding and curing of cell phone parts, digital camera accessories, etc.
Medical equipment: sealing of medical devices, such as catheters, syringes, endoscopes, etc.
Display industry: for display edge encapsulation.
Printing industry: for curing of inks and coatings.
Laboratory: for light curing of polymer chemistry, semiconductor materials
Product Features
Highly efficient curing: UV LED curing conveyor can quickly cure UV adhesives, coatings, and inks to improve production efficiency.
Energy efficient: UV LED lamps have an instant on/off function, eliminating the need for warm-up or cool-down time and resulting in low energy consumption.
Long Life: UV LED lamps typically have a life expectancy of over 15,000 hours.
Cold light source: UV LED lamps produce almost no heat during the curing process, suitable for curing heat-sensitive materials.
Environmentally friendly and non-polluting: UV LED lamps do not contain mercury and do not produce ozone during use.
Intelligent control: equipped with a touch screen controller, can set curing time, power, and other parameters.
Safety protection: equipped with a safety interlocking device to ensure the safety of the operator
Design Features
Integrated safety shut-off function: The conveyor belt and curing lamp have an integrated safety shut-off function to ensure safe operation.
High Temperature/UV Resistant Conveyor Belt: The conveyor belt is made of high-temperature and UV-resistant material to ensure long-term stable operation.
Conveyor belt suction fixing: The conveyor belt has a suction function to fix the parts and prevent them from moving during the curing process.
Fully Shielded and Adjustable Tunnel Height: The curing area is fully shielded to prevent UV leakage, while the tunnel height is adjustable to accommodate parts of different heights.
Multiple Conveyor Belt Width and Speed Options: Conveyor belt widths range from 110mm to 520mm and conveyor speeds range from 0.1 m/min to 6.0 m/min.
Curing Wavelength Options: A variety of curing wavelengths are available, including 365nm, 385nm, 395nm, 405nm, etc. to accommodate different photosensitive materials.
Data sheet
|
Required |
No. |
Item |
Technique Data |
|
Process Requirements
|
1 |
Wavelength of LED lights |
365nm±5nm |
|
2 |
Light irradiation dimension |
Effective irradiation size:L300*W300mm(Two light sources irradiate side by side) |
|
|
3 |
Irradiation Energy requirements |
C/T less than 12S,Irradiation Energy≥2500mJ/cm2 |
|
|
5 |
Operating Temperature |
lower than 50°C;Over-temperature alarm |
|
|
6 |
Light Source Cooling Methods |
air cooling |
|
|
7 |
Lifetime of the light source |
About 20000H |
|
|
Equipment construction
|
1 |
Equipment Dimensions |
L less than700mm |
|
2 |
Equipment installation method |
floor-standing |
|
|
3 |
Height of working surface |
1000±50mm |
|
|
4 |
Footing height |
>50 less than 100mm adjustable |
|
|
Equipment Layouts
|
1 |
Equipment Layout Methods |
Online |
|
2 |
Material flow direction |
Left in→right out, right in→left out; easy for quick changeover |
|
|
3 |
Track Widening |
Screw guide rail manual adjustment, rail width 300mm adjustable; adjustment accuracy ± 0.1mm |
|
|
4 |
Number of tracks |
Single track; 1 track fixed, 2 tracks moving |
|
|
input and output
|
1 |
Loading method |
Chain conveyor belt inflow |
|
2 |
Unloading method |
Chain conveyor belt outflow |
|
|
security protection
|
1 |
Emergency stop function |
Configuration of emergency stop button |
|
2 |
Product Safety Protection |
The parts in contact with the product should be protected from knocks, bumps and scratches. |
|
|
3 |
Equipment Security |
The corners and edges of the equipment should be chamfered to prevent personnel cuts. |
|
|
4 |
Grounding of the entire machine |
Equipment electrical devices should be individually and reliably grounded to ensure good grounding performance |

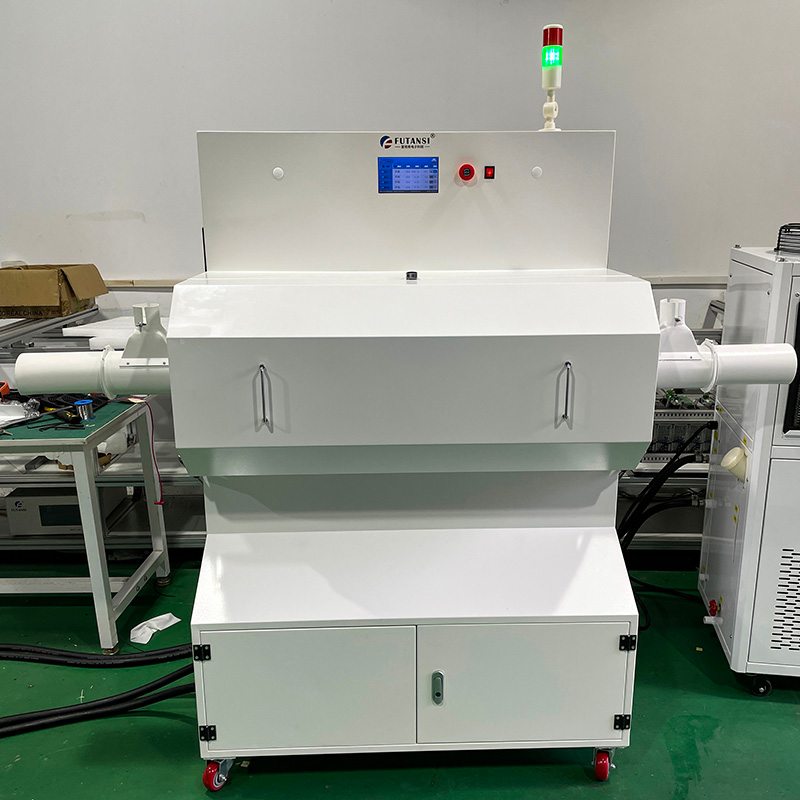

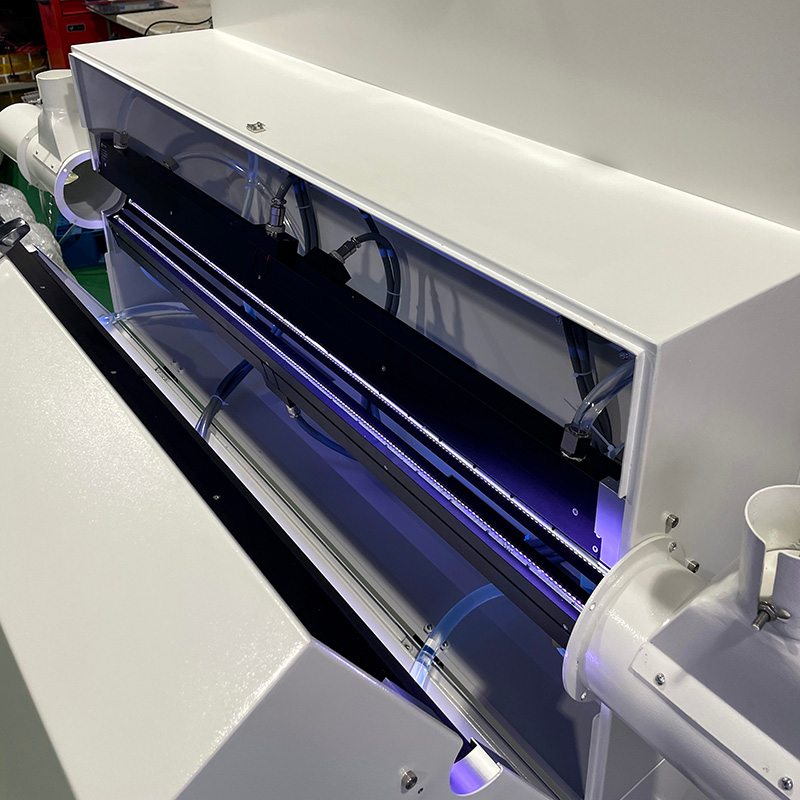

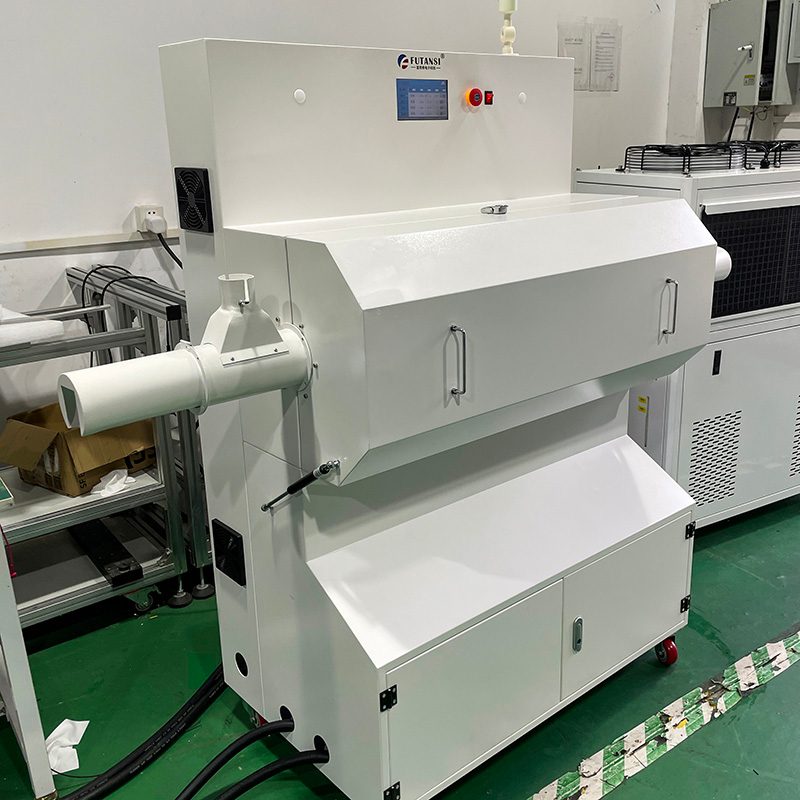

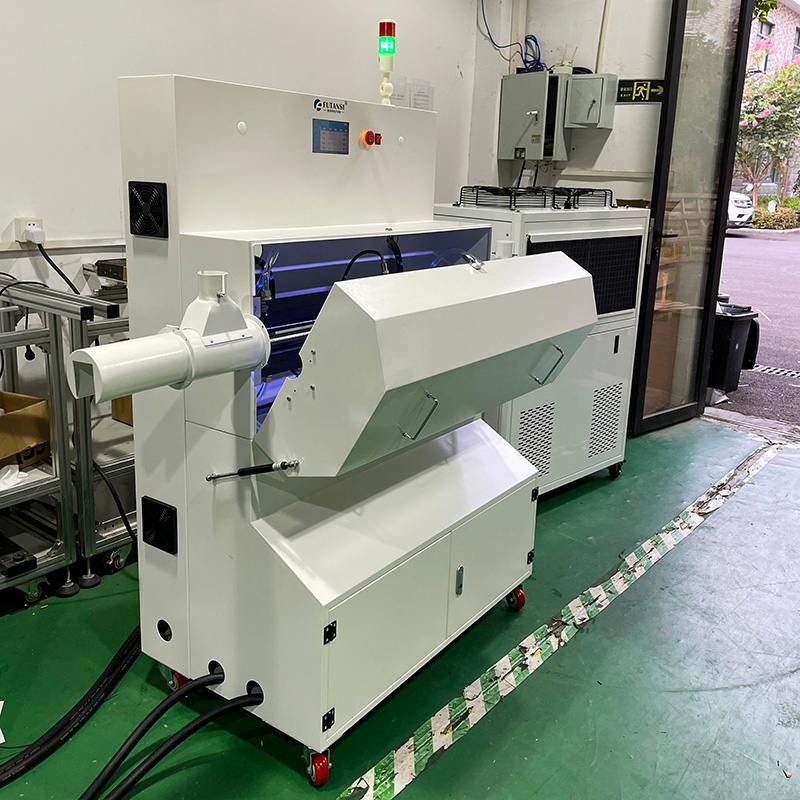

UV Irradiation machine structure
