Customized LED UV Curing system
LED curing systems are packed with a touchscreen controller, and irradiation power is adjustable from 0% to 100%. Irradiation time can be set freely.
Customized LED UV curing systems are available from multiple suppliers, offering tailored solutions for specific applications. These systems can be designed from the ground up or adapted from existing platforms, with features such as adjustable wavelengths (e.g., 365–405 nm), customized irradiation areas, and multi-channel control (e.g., individual or simultaneous control of LED heads)

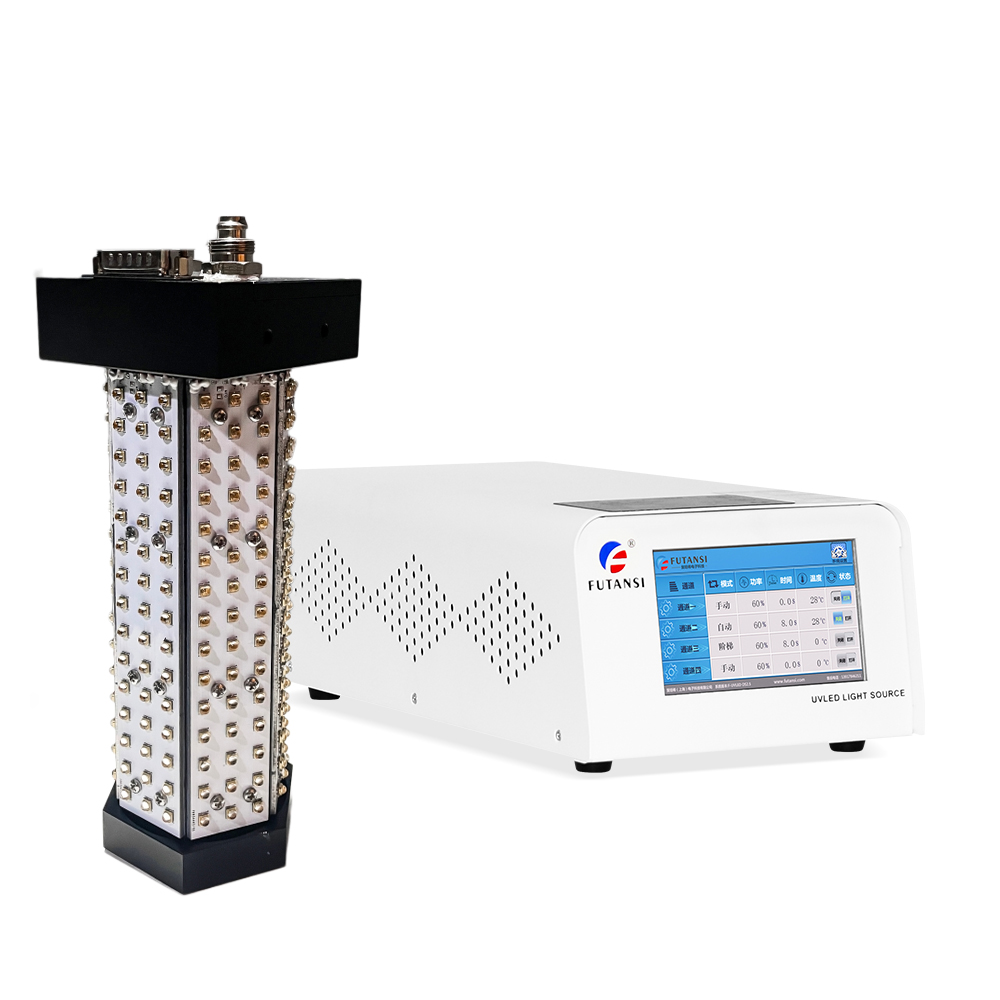

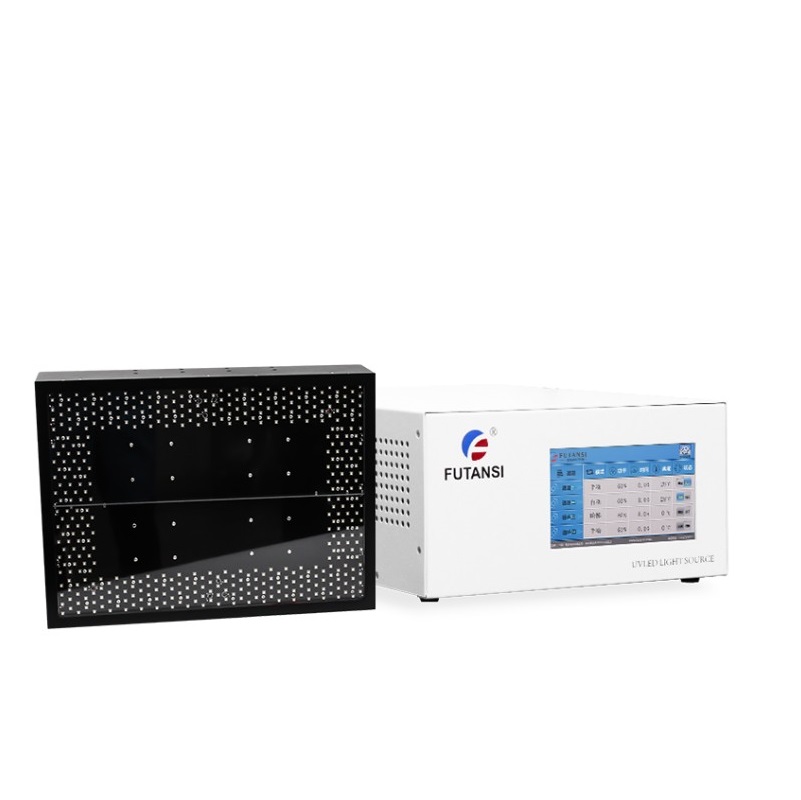

This system consists of a user-friendly touchscreen controller and a high-intensity LED emitter with a distinctive design. Over a 350 mm x 350 mm area, it offers superior uniformity and consistent curing energy compared to conventional systems. The curing energy is precision-controlled by a microprocessor within the LED chip.

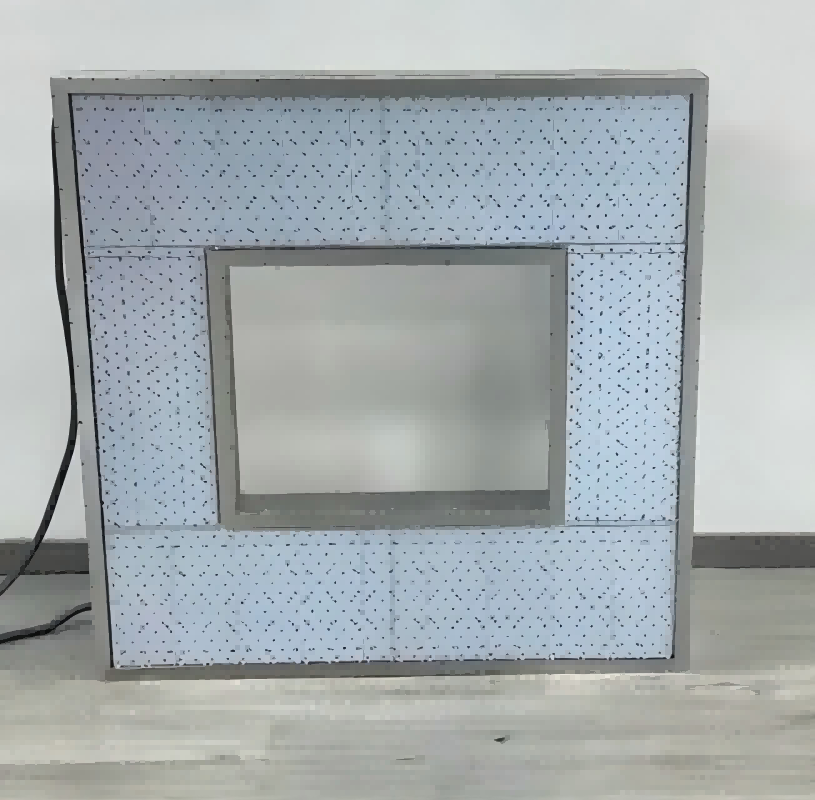

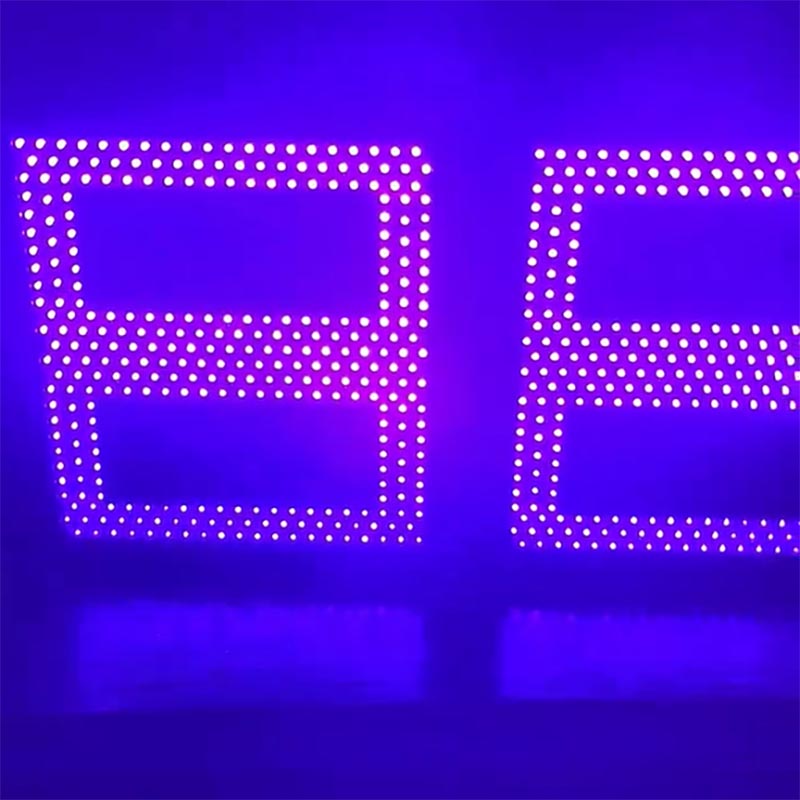

This innovative design permits ultimate customization, with a choice of three wavelength LED emitters (365, 385, 395, or 405 nm) and the freedom to adjust the curing area's size and pattern. It offers versatile setup options, suitable for both bench-top operation and automated processes, where the emitter can be mounted onto robotic arms or at a distance from the controller without intensity reduction.
The system features two operational modes:
- Admin Mode: Provides full device control for setting curing time and intensity cycles, allowing users to program and save specific curing profiles for future use.
- Production Mode: Offers a simplified interface for manufacturing staff to operate with ease.
The complete UVSP81T system includes a controller/power supply and LED emitter, with wavelengths of 365, 385, 395, and 405 nm available. Various accessories can be integrated for specialized applications, and components are sold individually. Futansi provides a one-year warranty against material and workmanship defects from the purchase date.
Futansi also offers a Try-and-Buy program, allowing potential customers to test the light-curing systems free of charge for two weeks.
Features
- High intensity
- Very high uniformity across the entire cure area over a wide range of working distances
- LED emitters available in 365, 385, 395, and 405 nm or other wavelengths
- Admin and production modes
- Touch screen with full keyboard
- Instant on-off
- Efficient LED temperature management and system monitoring
- Remote I/O interface
Controller
Note: The controller package comes with a 2-meter interconnect cable for linking the controller and emitter. For longer distances, an additional interconnect cable can be purchased to extend the range without compromising performance.
