254nm high power LED UVC flood lamp
Introduction

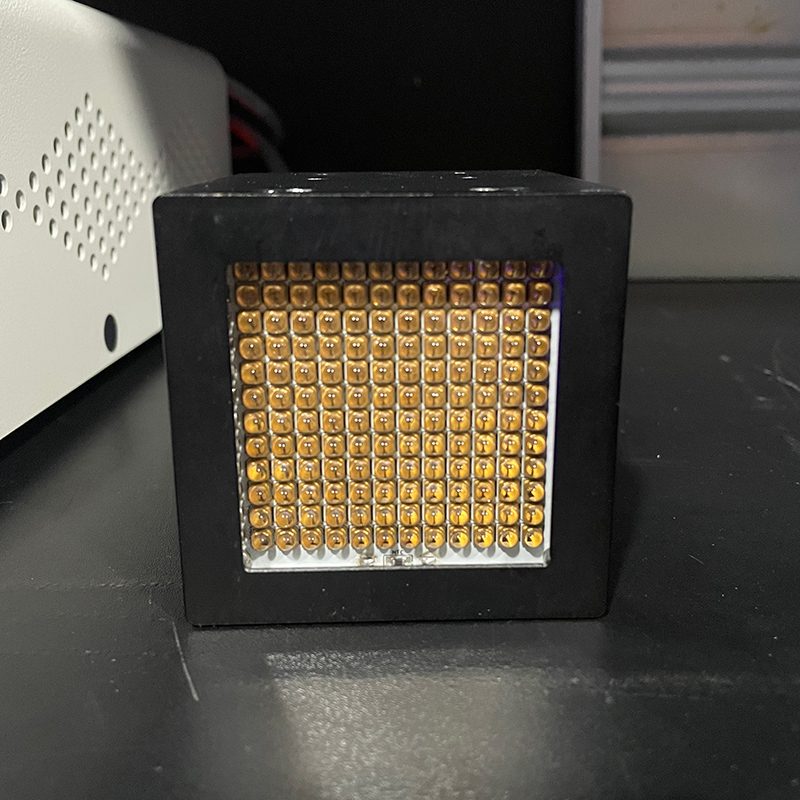

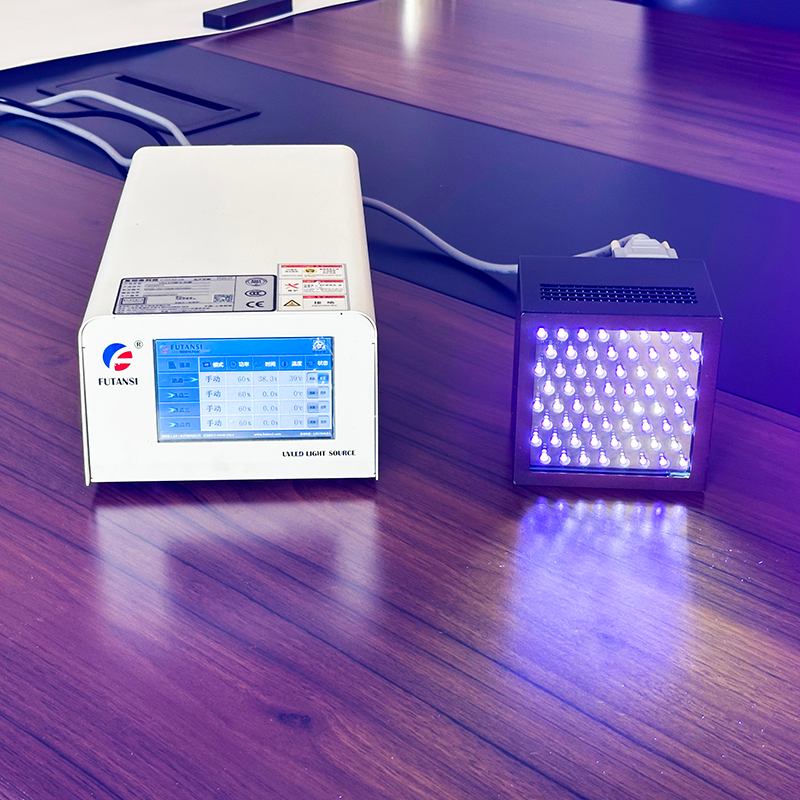

The 254 nm high-power LED UVC flood lamp is a next-generation germicidal luminaire that merges solid-state reliability with the proven DNA-disruption capability of the 254 nm wavelength. Unlike mercury-based tubes, these LED flood systems deliver instant, mercury-free, broadband-area disinfection with electrical efficiencies that now exceed 10 % at the chip level and package-level optical powers of 3 mW–70 mW per emitter. Arrays of dozens—or hundreds—of dies are integrated into modular flood heads that can irradiate several square meters from a distance of 0.3–2 m, making the technology attractive for hospitals, food plants, laboratories, and public transport.
Key Technical Characteristics
Wavelength & Germicidal Efficacy
- Peak emission centered at 254 nm with a typical FWHM of 10–12 nm, closely overlapping the germicidal maximum for nucleic acid absorption.
- Log-4 (99.99 %) reduction of E. coli achievable with ≈0.2 mJ cm⁻²; many bacteria, viruses, and fungal spores require 2–5 mJ cm⁻² for comparable kill, doses that a 50–200 mW flood head can deliver in <10 s at 300 mm working distance.
Optical Power & Efficiency
- Single-chip devices: 3 mW, 15 mW, 22 mW, 45 mW, 70 mW (TO-39 or SMD6868 packages).
- Multi-chip flood modules: 1–20 W total radiant flux commercially available; custom arrays up to 100 W demonstrated.
- Wall-plug efficiency (WPE): 2–3 % (early) → 8–12 % (latest AlGaN-on-AlN chips).
- Beam control: 30°, 60° or 100° interchangeable secondary optics allow uniform flood coverage without hot-spots; optional collimators give 6° pencil beams for spot curing or remote sensing .
Drive & Thermal Design
- Forward voltage 6–7 V per chip; arrays wired in series/parallel to match 24 V or 48 V DC supplies.
- Copper-core MCPCB and anodised aluminium housing keep junction temperature <85 °C; integrated NTC or I²C temperature sensors enable closed-loop derating above 35 °C ambient.
- Life data: L₇₀ >10 000 h (early) → >20 000 h (latest) when Tj ≤80 °C .
Application Scenarios
- Water & Air Treatment
High-power 254 nm LED modules are beginning to supplement low-pressure mercury sleeves in point-of-use water reactors and HVAC duct inserts; instant on/off enables demand-based dosing and eliminates warm-up losses.
- Analytical & Forensic Instruments
Because 254 nm corresponds to the historical mercury line, LED floods are now embedded in document examiners, chromatography cabinets, and fluorescence microscopes where narrow-band excitation is required.
Comparative Advantages Over Mercury Lamps
| Feature | 254 nm LED Flood Lamp | Conventional 254 nm Mercury Tube |
|---|---|---|
| Warm-up time | <1 ms (instant) | 3–5 min |
| Mercury content | 0 mg | 5–400 mg |
| On/off cycling | Unlimited | Cathode degradation |
| Optical tuning | Chip mixing 255-280 nm | Fixed 253.7 nm |
| Shock resistance | Solid state | Fragile quartz envelope |
| Lifetime (L₇₀) | 10k–20k h | 8k–12k h |
| Dimmability | 0–100 % linear | 30–100 % only |
Practical Selection Guidelines
1. Calculate dose: Required fluence (mJ cm⁻²) × target area (cm²) ÷ desired exposure time (s) = minimum radiant flux (mW).
2. De-rate for distance: Irradiance falls with the inverse square; add a 25% safety factor for surface roughness and shadowing.
3. Thermal head-room: Keep ambient ≤35 °C or provide forced air; every 10 °C rise above 85 °C junction halves lifetime.
4. Safety interlocks: Choose modules with a 30-second delayed start, motion sensor, and UV-blocking quartz window for operator areas.
5. Maintenance: Wipe fused-silica window monthly with isopropanol; monitor drive current and junction temperature via on-board diagnostics.
Future Outlook
Chip makers are targeting 15 % WPE and 200 mW single-chip outputs by 2026, which would push flood-lamp doses past 500 mW cm⁻² and open sectors such as rapid medical-instrument sterilization and high-flow water disinfection currently dominated by medium-pressure mercury. Integration with IoT sensors and UV-C dose-mapping cameras will allow adaptive, data-logged disinfection cycles that satisfy upcoming regulatory standards for traceable UV germicidal irradiation (UVGI).
The 254 nm high-power LED UVC flood lamp is no longer a laboratory curiosity but a production-ready tool that delivers energy-efficient, mercury-free germicidal light over large areas. With instantaneous operation, tens of thousands of hours of life, and the ability to tailor beam angles and spectral content, these solid-state flood systems are poised to replace traditional mercury tubes in professional disinfection and analytical applications alike.
